Avantech Engineering Consortium Pvt. Ltd.

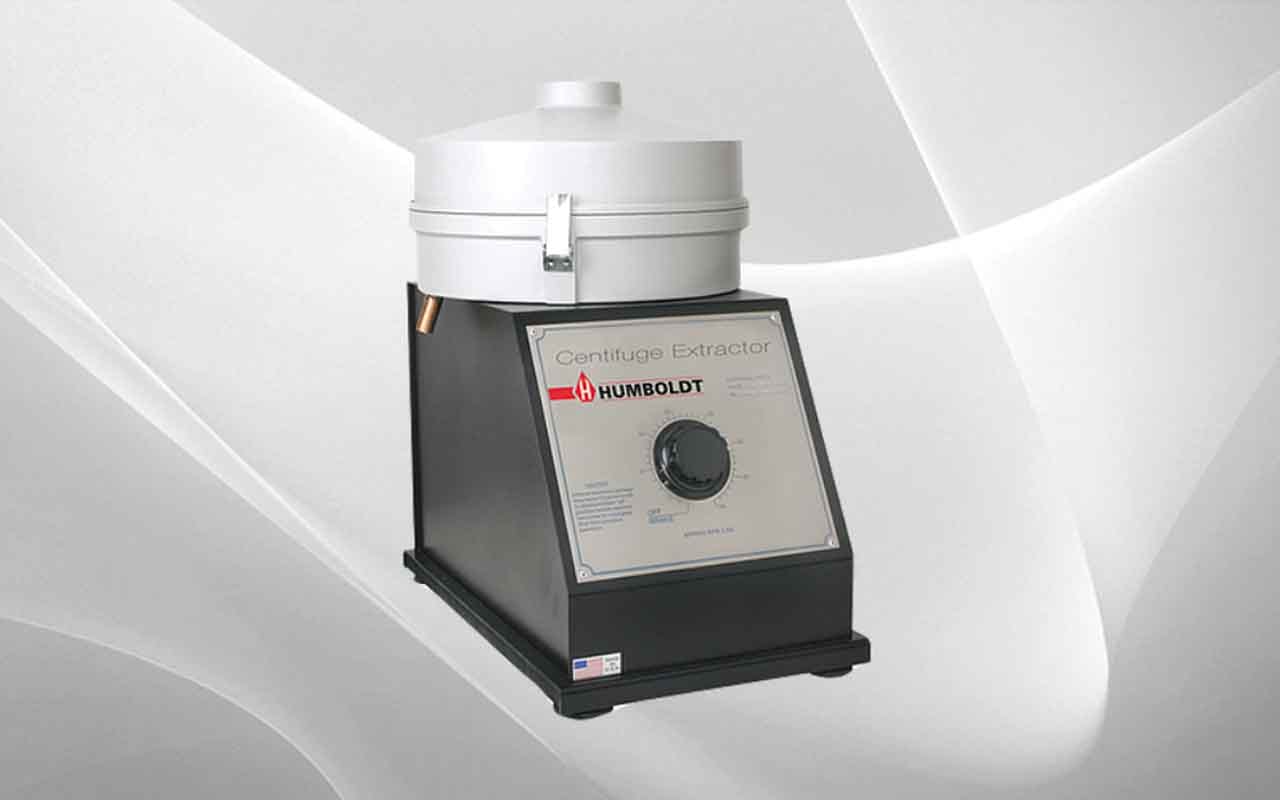

Asphalt Centrifuge Extractor (Explosion Proof)

The asphalt centrifuge extractor is designed for determining the percentage of bitumen in asphaltic mixtures. Available in 1500g and 3000g capacities, these extractors conform to the explosion-proof standards for the safety of operating personnel.

All models feature a removable, aluminum bowl assembly, which quickly lifts out of the sealed housing for efficient specimen handling. A simple, control knob adjusts bowl speed up to 3600 rpm, and, an electric brake stops the centrifuge in seconds when extraction is complete. The heavy, cast-aluminum bowl cover latches securely in place and features an integral solvent dispensing cup for easy pouring of the solvent into the bowl. Power is supplied by a reliable 1/8hp DC motor.



Extractors are supplied complete with 25 filter discs. Replacement filter discs (100-packs).


Dimensions: 1500g units: 12″ x 20″ x 22″ (305 x 508 x 559mm); 3000g units: 14″ x 20″ x 22″ (356 x 508 x 559mm).
