DCD-025 LVDT Calibration Device

  • Easy to use, no special tools required
  • Digital display readout
  • Spring loaded linear displacement (non-rotational)
  • User-selectable SI or English units
  • 25 mm (1 inch) travel range
  • 0.001 mm (0.000050 inch) resolution
  • Measures absolute or relative displacements
  • Accepts LVDTs with 3/8 in, 3/4 in, and 7/8 in body diameter, with other sizes available upon request
  • Micrometer device certified by manufacturer

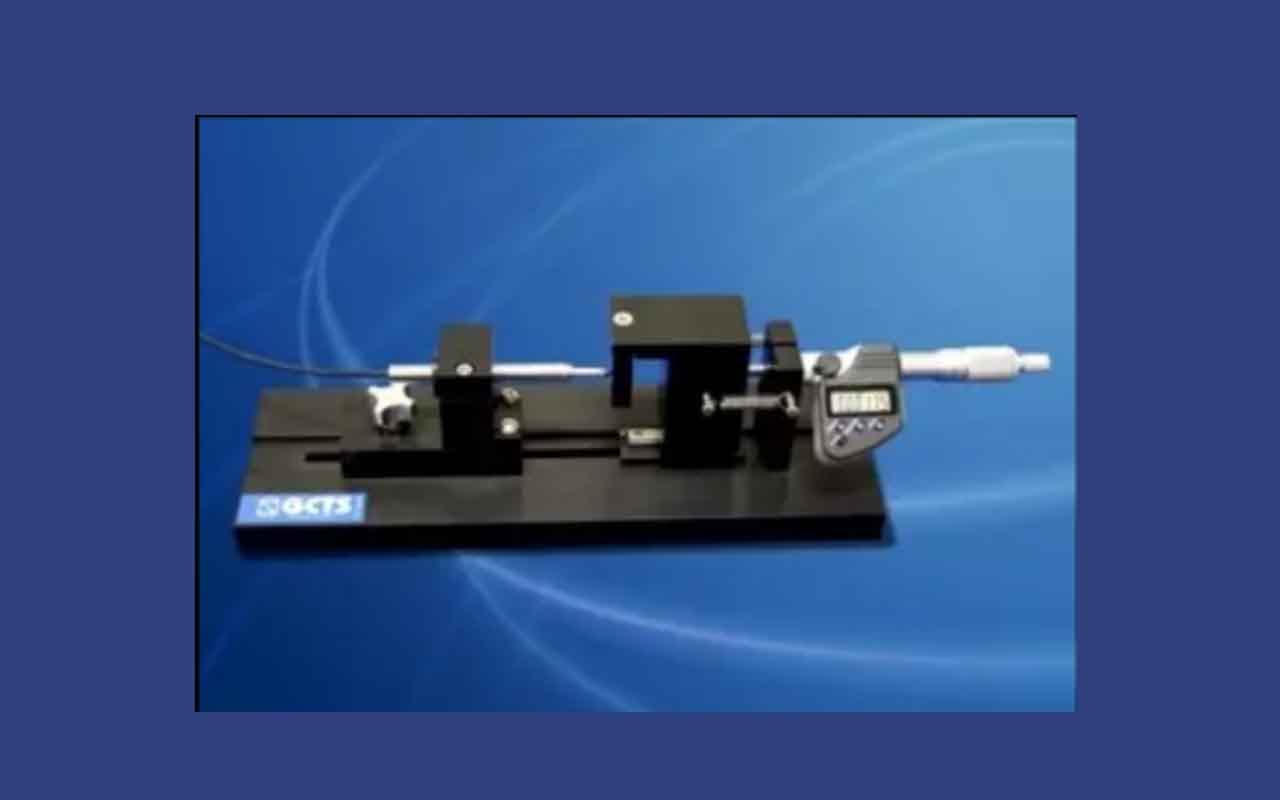

The GCTS LVDT Calibration Device provides a very simple and easy to use technique to accurately calibrate a wide variety of LVDTs.

The readout is available in both SI and English units. The device has an adjustable mounting bracket that can accommodate LVDTs of most sizes.
