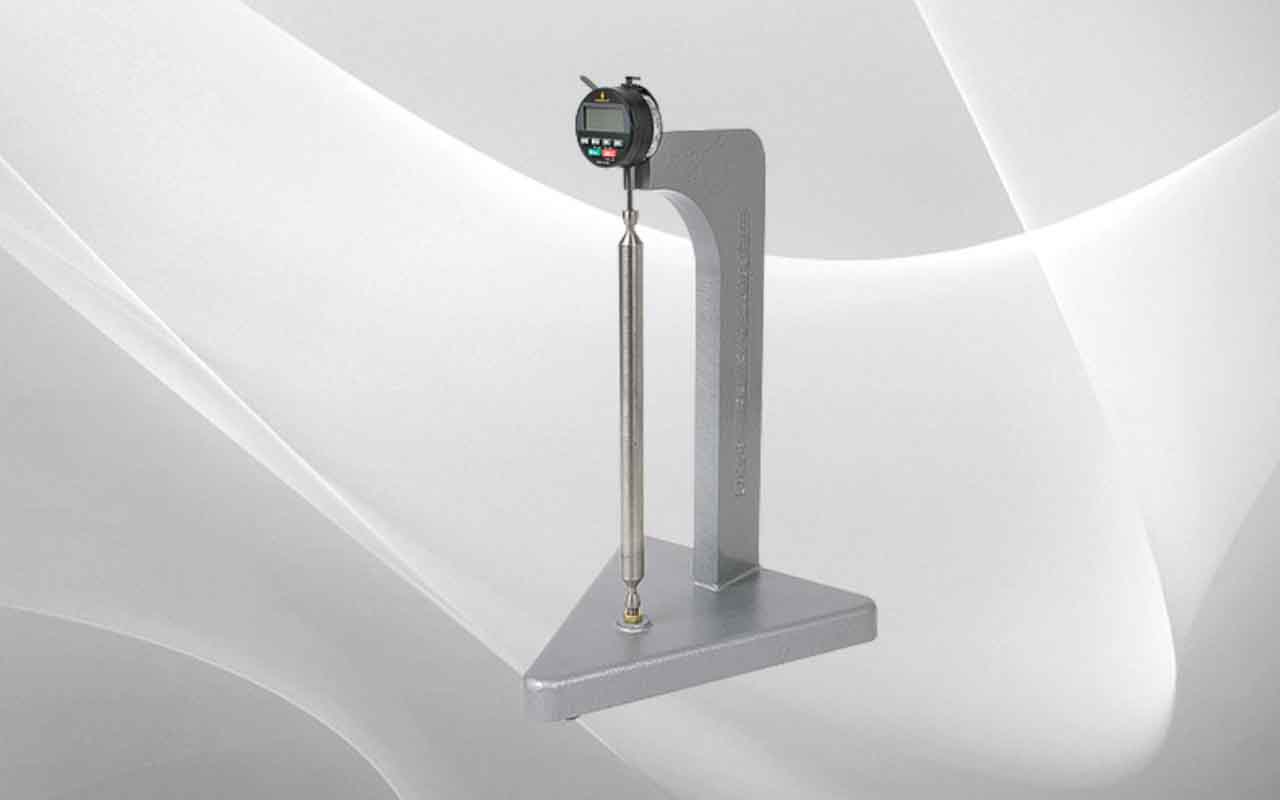

Length comparators measure length changes of hardened cement paste, mortar and concrete prismatic specimens. Indicators are mounted on a sturdy upright support attached to a solid triangular base.

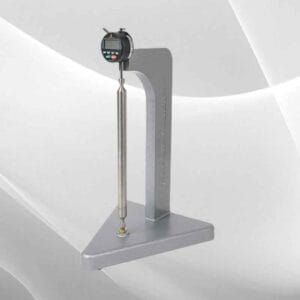

All units Include stationary and movable anvils designed to fit H-3260 gauge studs, which are cast into test specimens and an invar reference bar. Comparators for 10″ (254mm) or 16″ (406mm) effective length samples with digital indicator with a range of .600″ and resolution of .0001″. Measures inches and millimeters includes batteries and AC adapter. Unit can be zeroed at any point on the range and can be switched from inches to mm by pressing a button. Includes stationary and movable anvils designed to fit the H-3260 gauge studs that are cast on test specimens and an invar reference bar. Unit accommodates test specimens up to 4″ x 4″ (102 x 102mm) cross section.
