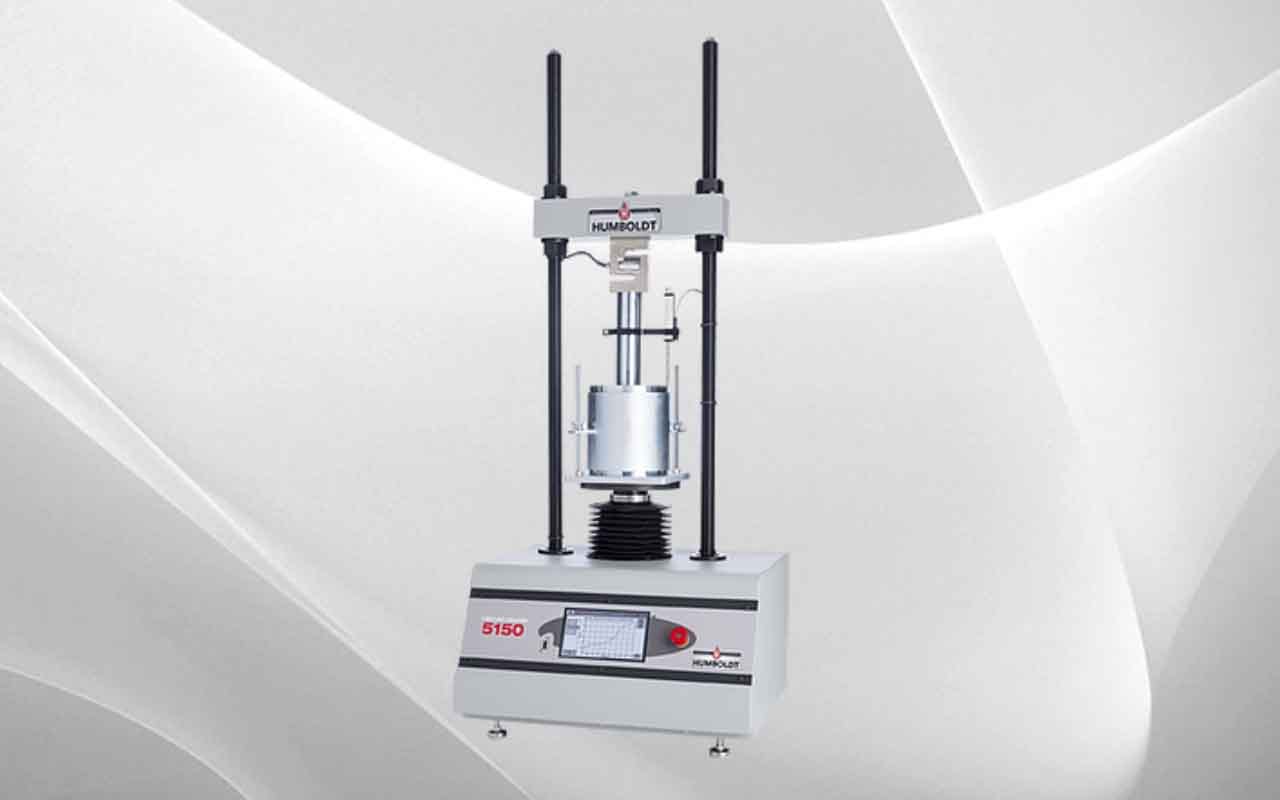

HM-5150A.3F Load Frame, CBR (California Bearing Ratio) Automatic

CBR/LBR Specific Automatic Load Frame
ASTM D1883; AASHTO T193; BS 1377 Part 4
Humboldt provides these two Elite Series Load Frames for doing CBR and LBR applications.

The HM-5150A Load Frames has been specifically designed to handle CBR and LBR applications. Its heavy-duty design and precise stepper-motor control provides a stable platform for years of reliable service. From educational institutions and consulting firms to high-volume commercial labs and construction projects, the HM-51150A Load Frame can perform these applications with ease.

The HM-5150A Load Frames has been specifically designed to handle CBR and LBR applications. Its heavy-duty design and precise stepper-motor control provides a stable platform for years of reliable service. From educational institutions and consulting firms to high-volume commercial labs and construction projects, the HM-51150A Load Frame can perform these applications with ease.

Like all Elite Series Load Frames, the HM-5150A is built around Humboldt‘s integral, data logger with touch-screen control, which allows the load frame to be used as standalone device capable of full test control and data logging, as well as controlled from a network computer.

Standalone Control
The waterproof, touch screens featured on these load frames provide a colorful, at-a-glance monitoring of testing functions without the use of a computer. Operators can see all the data in several formats at the machine during the testing procedure. Test data can then be transferred to a computer for use with Humboldt‘s NEXT Software for report generation.

Computer Control
Humboldt‘s Next software is included with the all Elite Series Load Frames. This software provides robust machine control, data acquisition and report generation for those using a computer to control testing operations.

In addition, operators have the ability to view and control testing operations from a PC in the lab, in the next room or at a different location, while also providing report generating capabilities using NEXT software and the test-specific software modules.

A CBR-specific software module is available for use with the NEXT software, which provides CBR-specific setup and formatting, rather than the generic formatting provided with the basic NEXT software.

The HM-5150A is sold as a Load Frame ONLY, refer to the accessories tab above for items needed to perform CBR tests.

Specifications
Load Capacity: 11000 lbf (50kN)
Speed Range: 0.05 in/min (1.27mm/min) and 1.00 mm/min
Data Channels: 2
Platen Size / Travel: 8″ (203mm) / 4″ (100mm)
Data Storage: 1000 tests and up to 3000 readings per test
Clearance, Vertical: 27″ (686mm)
Clearance, Horizontal: 11″ (286mm)
Voltage: 110/220V 50/60Hz – 5.0amps
Net Weight: 120 lbs (54kg)

Controller Specifications

Display (Resistive Touch) 7″ (178mm) VGA (480 x 800)
Real-time Test Data Graphic and Tabulation
Processor Dual 32-bit ARM
RAM 64MB
Memory, Non-Volatile 4GB
Analog to Digital Converter 24 bit
Data Acquistion 2 Channels
Logging Speed up to 50 readings per second
Multi-Test Storage 1000
Points Per Test 3000
USB port (front) export data, import/export calibration data, WiFi
USB Port (back) provides external power for wireless access point
Ethernet Connection for network connectivity
Emergency Stop Large Button
24-bit Differential Analog to Digital Converter 2
Ambient Temperature Sensor 1
Ambient Temperature Sensor 1
Limit Switches 2
Firmware Update Ethernet or flash drive
