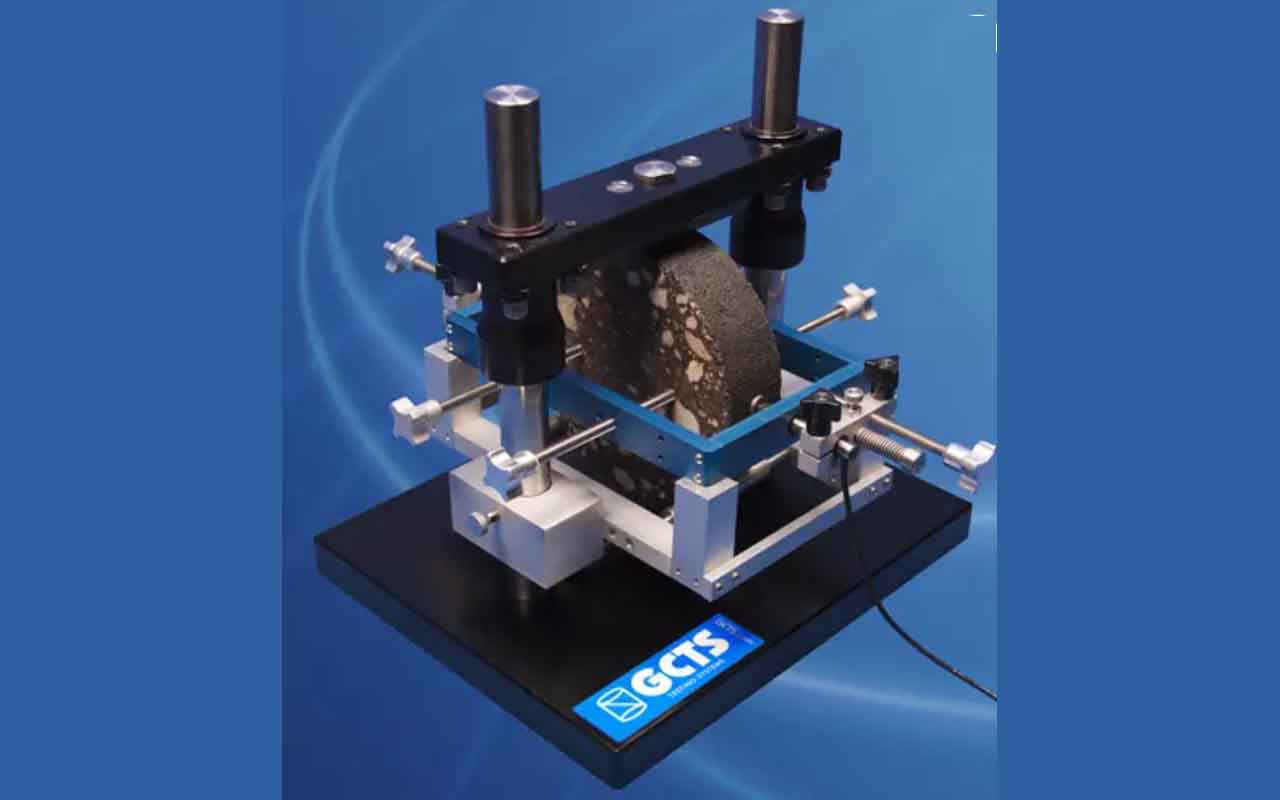

IDT-FRM Indirect Tension Apparatus

  • Frame to perform indirect tension and creep compliance tests
  • 100 mm (4 in.) to 150 mm (6 in.) diameter specimens
  • Up to 90 mm (3.5 in.) specimen thickness
  • Meets all current ASTM, AASHTO, and EN testing standards
  • Specimen-mounted or frame-mounted measurement transducers
  • Easy specimen mounting mechanism
  • Compatible with any GCTS loading frame
  • Functional in all temperature conditions provided by GCTS Environmental Chambers


The GCTS IDT-FRM Indirect Tension Module can be used with any GCTS loading frame to easily perform indirect tension or creep compliance tests on Hot Mix Asphalt specimens. The easy-to-use centering mechanism ensures that the specimen is precisely centered for each test. Both frame-mounted and specimen-mounted deformation sensors can be used, ensuring that this module meets the newest ASTM, AASHTO, and EN testing standards.
