TREND® CEN

  • Energy-absorbing W-beam barrier terminal.
  • 110km/h (P4) and 80 km/h (P2) systems available.
  • Tested to European ENV 1317-4 criteria.
  • Impact Severity Class A (ASI ≤1.0).
  • Displacement zone level D1.1 (permanent lateral displacement ≤ 1.0 meter).
  • Certificate of Conformity issued by EU Notified Body.
  • Galvanized, all-steel construction for durability.
  • Multiple post anchoring options.
Category:

Description

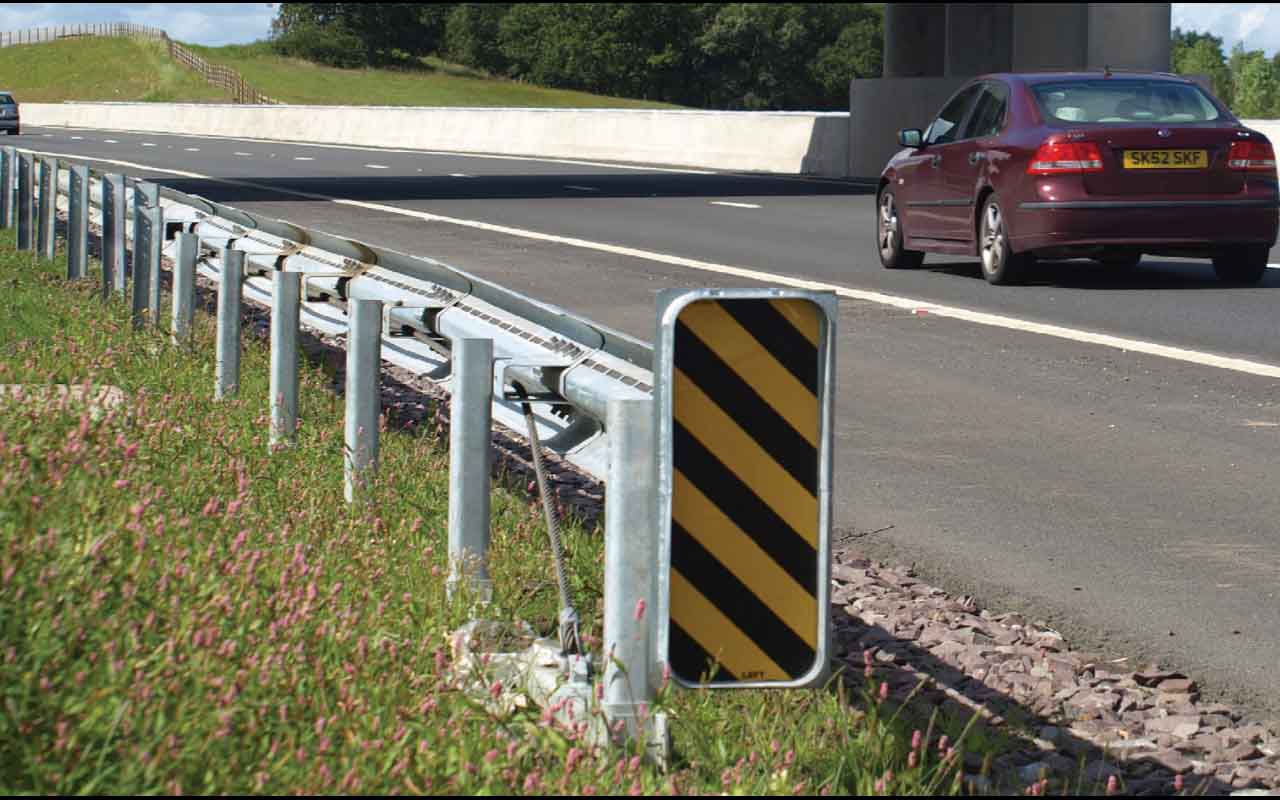

The TREND® CEN end terminal is an energy absorbing steel post terminal for use with W-Beam barriers. The lower post, having a U-Section, is driven into the ground. The upper post, with its U-Section, slides into the lower post and is then secured using a steel tension bolt.

During a head-on impact within ENV 1317-4 criteria, the longitudinal forces break the tension bolt, releasing the upper post. The clamping forces between the rails and deformation of the rail sections help absorb energy as they slide rearwards.
