For the dynamic plate load test using the Medium Heavy Falling Weight Deflectometer according to TP Gestein-StB, Part 8.2.1

•    For testing highly compacted soil and base courses
•    Double impact force (14.140 KN)
•    Double maximum ground pressure (0.2 MN/m²)
•    300 mm loading plate and 15 kg falling weight
•    Calibrated according to TP BF-StB, Part 8.4
•    As an individual device or as an addition to the Lightweight Deflectometer

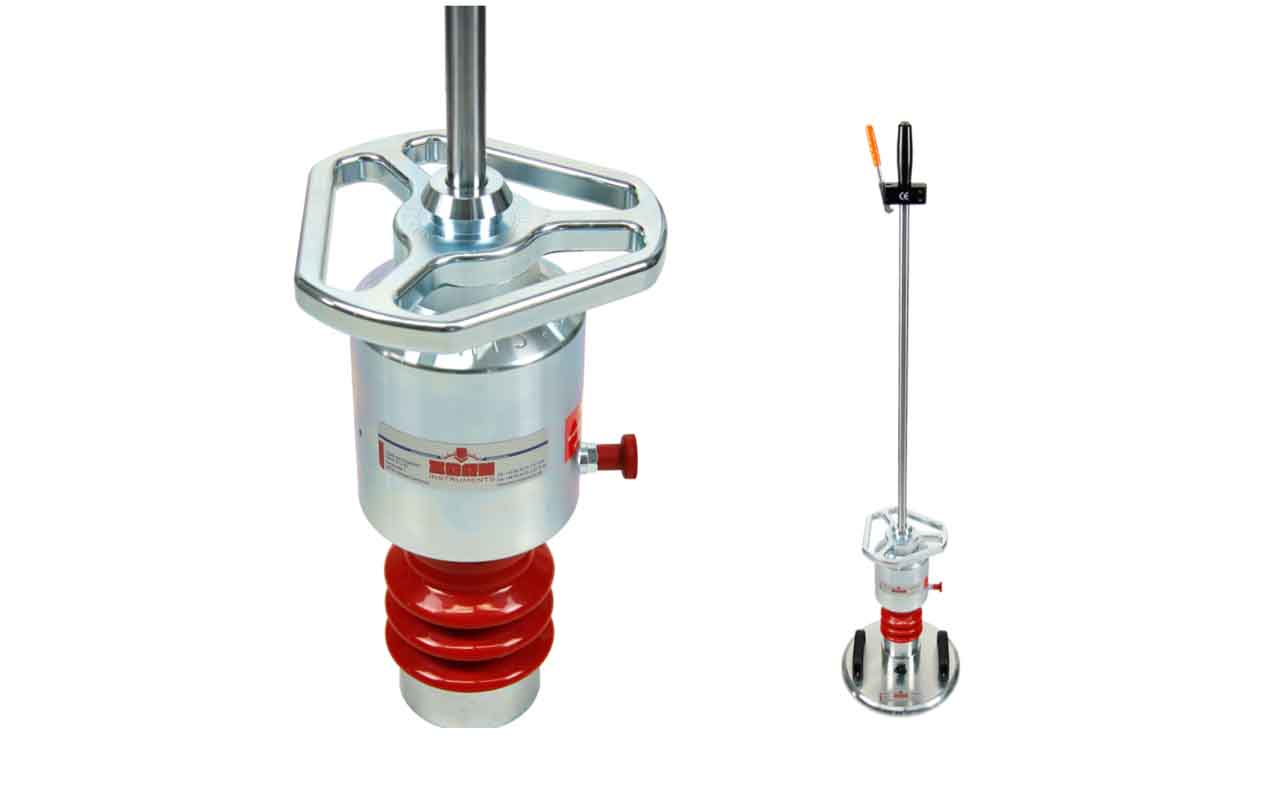

The dynamic plate load test with the Medium Heavy Falling Weight Deflectometer is used to check the soil and base courses applied using loads similar to traffic. A dynamic deformation modulus Evd,M is used as the measurement variable. The test is similar to the familiar method with the Lightweight Deflectometer (ZORN ZFG); with the difference that the maximum normal stress under the loading plate of the Medium Heavy Falling Weight Deflectometer is 0.2 MN/m² (0.1 MN/m² on the ZFG). The maximum impact force produced by a 15 kg falling weight is double that of the Lightweight Deflectometer at 14.140 kN.

Technical test specification:
The Medium Heavy Falling Weight Deflectometer is suitable, as per the technical test specification (TP Gestein-StB Part 8.2.1), for testing the load-bearing capacity of courses without binding agent according to ZTV SoB-StB, i.e. for frost protection courses, gravel and ballast courses, wearing courses without binding agent as well as for other courses with similar load-bearing capacity. The measuring range is specified between 30 and 150 MN/m².
Permissible limits or instructions for the implementation of comparative tests (for instance to the static plate load test according to DIN 18134 or to the Lightweight Deflectometer according to TP BF-StB, Part 8.3) are expressly not part of the test specification.
