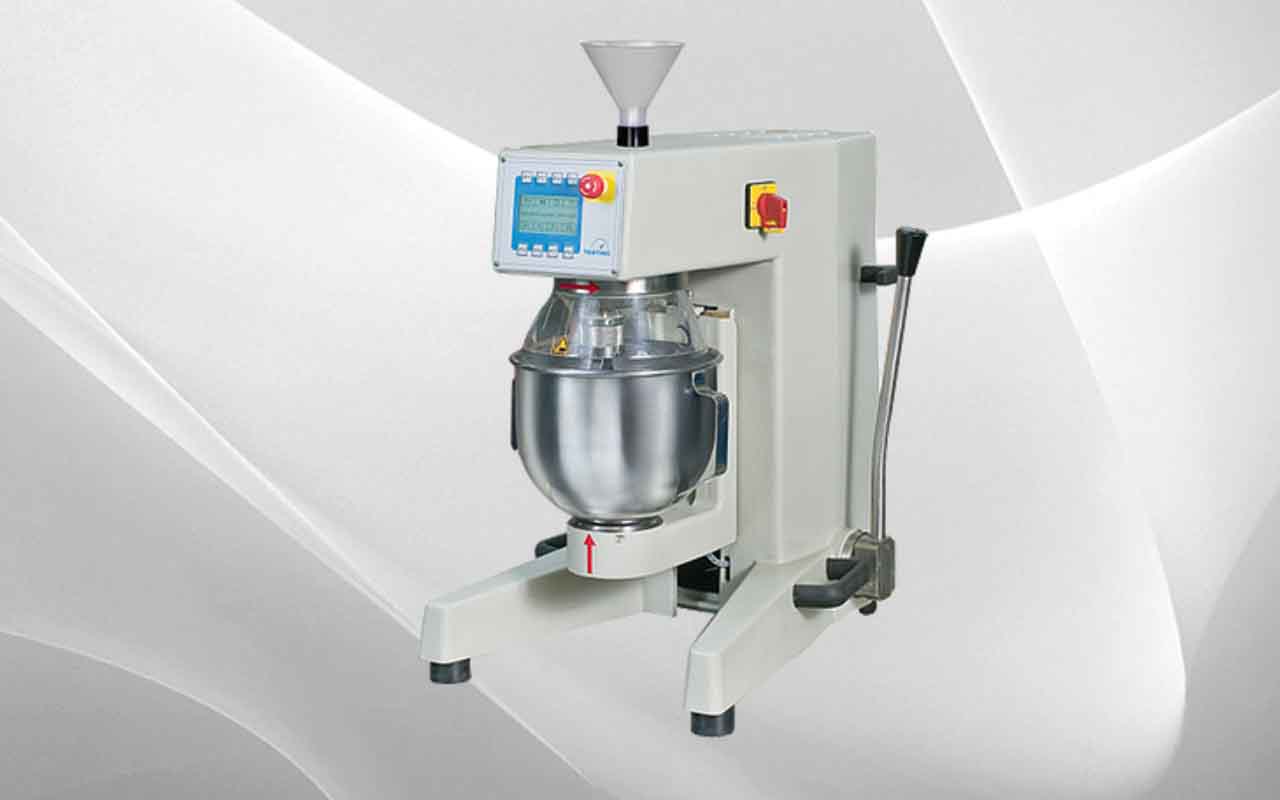

H-3852.3F Mortar Mixer, 5L (5.3qt), Deluxe Manual Control, ASTM

Two-speed mixer designed to mix cement mortars and pastes. Mixer provides manually-controlled cement, water and sand supplies. Mixer features a 5 Liter (5.3qt) stainless steel bowl and ASTM stirrer, and a two-speed motor, which runs at either 140 ±5 rpm or 285 ±10rpm.

Features touchscreen-operated control panel, which provides fast, easy control in seven languages. Numerous safety features are incorporated in the mixer and includes a service programs with malfunction messages for operator, including paddle/planetary speed and time monitoring.

Electrical Specification is: 110/220V 50/60Hz

Heavy-duty construction of aluminum and cast iron provides durability and a long service life. the mixer provides a powerful, three-phase DC motor for quiet and maintenance-free operation aided by the use of planetary gears and a toothed, belt drive. The mixing bowl is connected to the mixer by a quick-release clamping system. The distance between the mixing bowl and the stirrer is 3 ±1 mm and can easily and accurately set.

Mixer design conforms to CE standards, featuring a mixing bowl cover, electronic position monitoring of the mixing bowl, emergency stop switch and restart protection.
