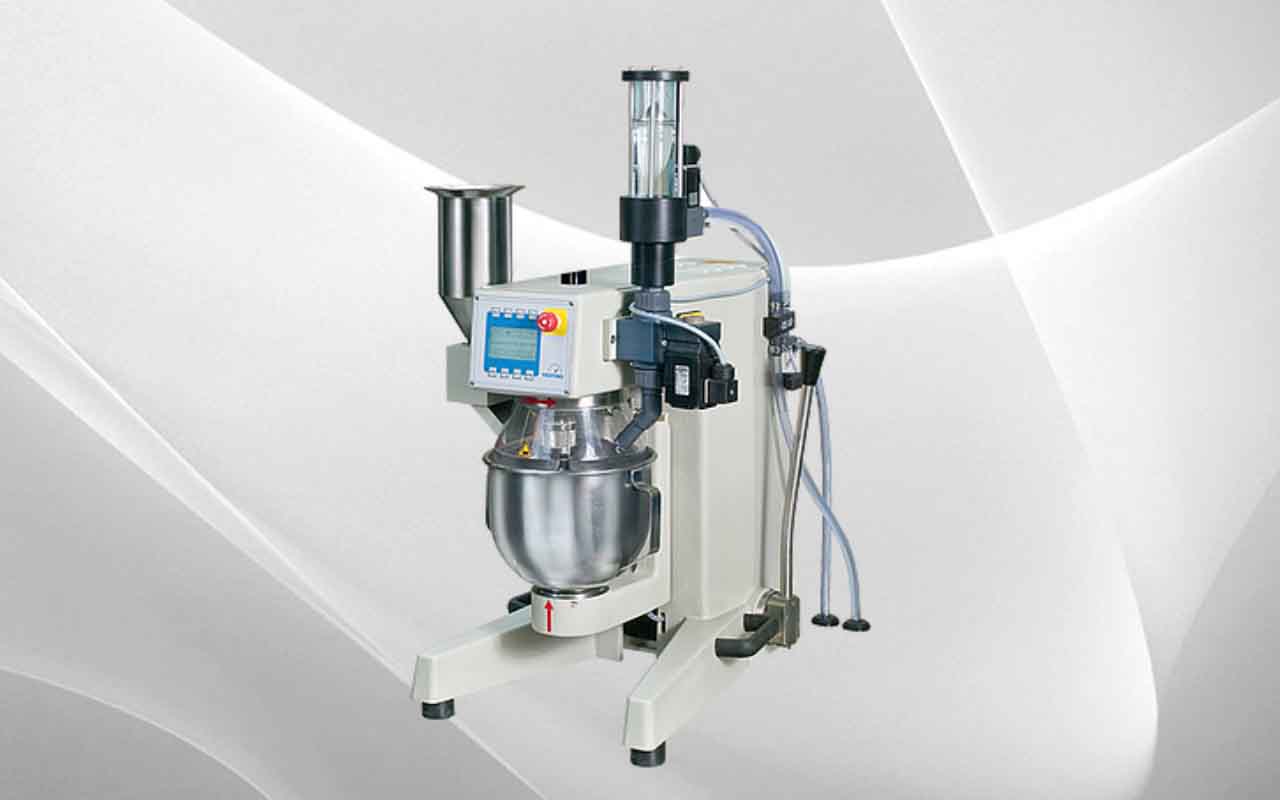

H-3854.3F Mortar Mixer, Auto Program Control and Auto Sand & Water Feed

Mixer with 4.73L (5qt) capacity provides automatic program control with auto sand feed and water supply and manually-controlled cement supply. Provides software with 4 standard programs installed covering the following standards: ASTM C305, EN 196 -1,3,9; EN 480 and EN 413. Two-speed mixer designed to mix cement mortars and pastes. Mixer features a 5 Liter (5.28qt) stainless steel bowl and ASTM stirrer, and a two-speed motor, which runs at either 140 ±5 rpm or 285 ±10rpm.

Features touch screen-operated control panel, which provides fast, easy control in eight languages. Numerous safety features are incorporated in the mixer and includes a service program with malfunction messages for operator, including paddle/planetary speed and time monitoring.

Heavy-duty construction of aluminum and cast iron provides durability and a long service life. the mixer provides a powerful motor for quiet and maintenance-free operation aided by the use of planetary gears and a toothed, belt drive. The mixing bowl is connected to the mixer by a quick-release clamping system. The distance between the mixing bowl and the stirrer is 3 ±1 mm and can easily and accurately set.
Mixer design conforms to CE standards, featuring a mixing bowl cover, electronic position monitoring of the mixing bowl, emergency stop switch and restart protection.
