ICAR Plus Rheometer | GERMANN

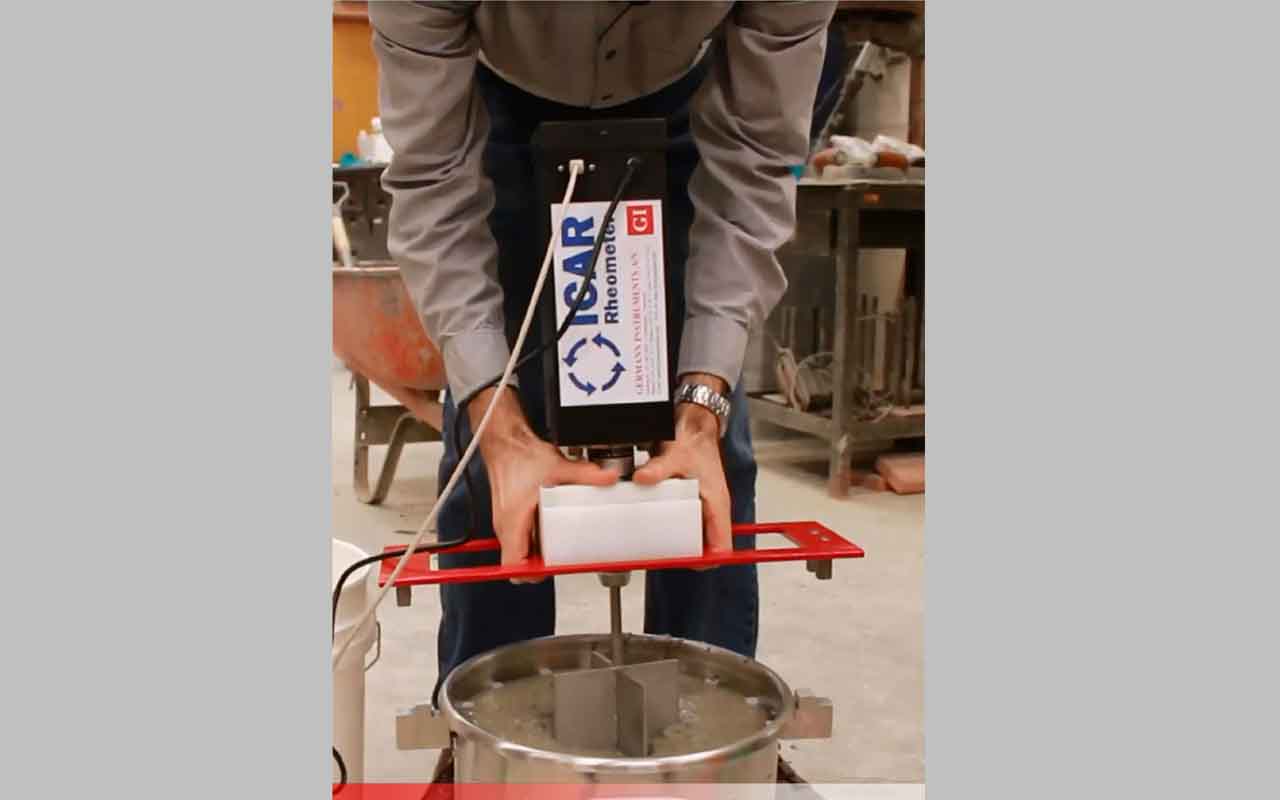

ICAR Plus Rheometer is a rugged, portable instrument for measuring fundamental flow (rheological) properties of fresh concrete. The instrument was first developed at the International Center for Aggregate Research (ICAR) located at The University of Texas at Austin and then by Germann Instruments to fill the need for a method to characterize the true flow behavior of concrete mixtures. The traditional methods of measuring slump or slump flow are not capable of characterizing the fundamental rheological properties of concrete that exist during the processes of mixing, transporting, and placement. As a result, the true performance of innovative concrete mixtures cannot be measured with these traditional slump-based methods. The ICAR Plus Rheometer provides, for the first time, a low-cost and simple to operate instrument that can be used for:

  • Research and development to characterize the influence of new materials on concrete rheology
  • Optimizing mixture proportions so that the resulting concrete flows readily but is resistant to segregation (especially important for self-consolidating concrete)
  • On-site quality control

Principle
Fresh concrete can be considered as a fluid, which means that it will flow under the action of shear stresses. The flow behavior of concrete can be represented by the following two-parameter relationship:
Icar_2which is known as the Bingham model: The parameter τo is the yield stress, and it represents the shear stress required to initiate flow. The slope of the line is the plastic viscosity, µ, and it affects the resistance to flow after the yield stress has been surpassed. These two parameters, which define the flow curve, provide a complete description of the flow behavior of a fluid.
Icar_3Concrete, however, is not a simple fluid because it displays thixotropic behavior, which means that the shear stress required to initiate flow is high if the concrete has been in an “at rest” condition, but a lower shear stress is needed to maintain flow once it has begun. This type of behavior is summarized in the schematic plot shown above, which shows the variation in shear stress with time for the case of a low applied shear strain rate. At the start, the shear stress increases gradually with time but there is no flow. When the stress reaches the static yield stress, the concrete begins to flow and the stress required to maintain flow is reduced to the dynamic yield stress. If the applied shear strain rate is reduced to zero and the concrete is allowed to rest, inter-particle forces create a weak framework that restores the static yield stress. With time, the static and dynamic yield stresses increase as the effectiveness of water-reducing admixtures diminish and hydration proceeds, which is commonly referred to as “slump loss.”
