A small-footprint, triaxial-specific pressure controller that provides the versatility, precision and durability found throughout Humboldt’s elite series.

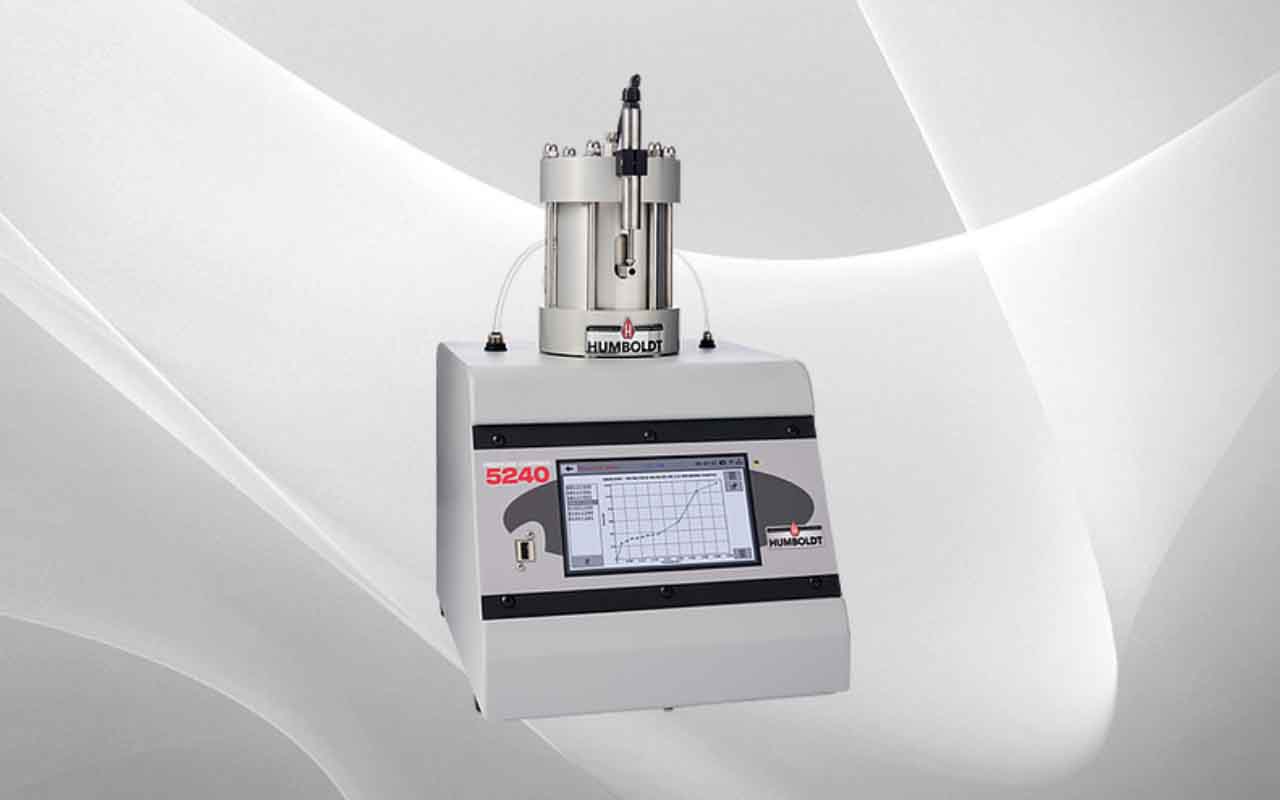

The HM-5240.3F is a fully-automated pneumatic pressure controller, which is highly accurate up to 150psi (1000kpa) in pressure and 100cc (100ml) in volume. It is designed specifically for geotechnical laboratory triaxial testing (UU, CU and CD) and provides control and monitoring of cell pressure, back pressure, pore water measurement and volume change when used with our elite series load frames.
The HM-5240 provides four (4) integral and independent data acquisition channels, which can be utilized in stand-alone configuration or accessed through a LAN-networked computer using Humboldt’s Next software. The unit is built with durable high-quality components and feature the use of two electronic regulators to ensure smooth and reliable operation of pressures, as well as precise results.
In stand-alone mode, this pressure controller provides a 7” (178mm) touch-screen controller. This new waterproof, touch screen provides colorful, at-a-glance monitoring of testing functions without the use of a computer. Operator could see all the data in several formats at the controller while the test is running. Then can be viewed simultaneously or downloaded later to a computer in the lab, in the next room or at a different location, while also providing report generation capabilities from within Humboldt’s NEXT software or our enhanced test- specific modules.
