Avantech ACT

  • Max Specimen Weight : 4000 gms
  • Standard Working Temperature: 538 0C
  • Typical Test time for 1000gm, 4% specimen: 20 to 30mins
  • Balance: 10KG, 0.1 gm accuracy
  • Memory: Yes
  • In built printer: Yes
  • Dimensions: 135cm x 75cm x 60cm
  • Furnace Internal Dimensions: 43cm x 35cm x 30cm
  • Power Requirements :440V/50Hz, 3Phase

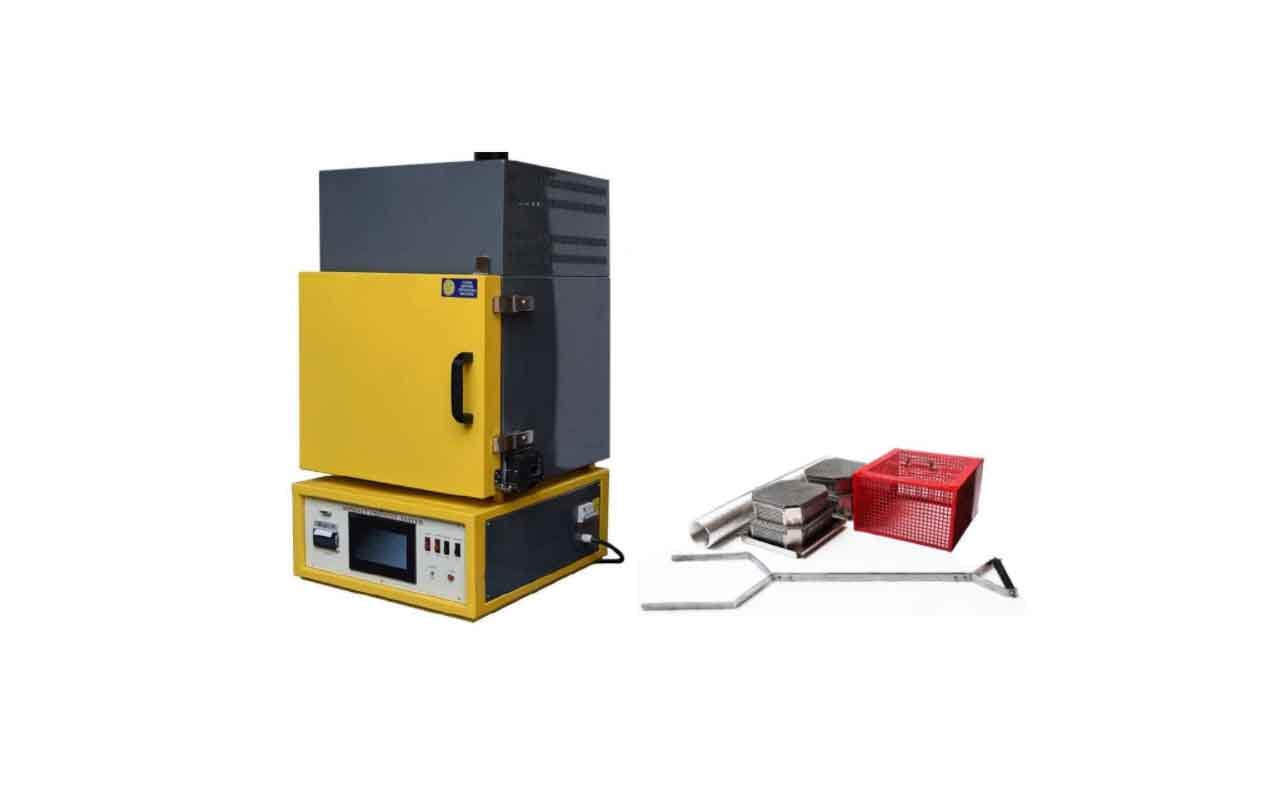

Measures the binder content in Asphalt Mixes by Ignition Method. The asphalt specimen is spread in the two trays provided and loaded into the furnace cavity. The loss of binder content due to ignition at high temperature is measured by the high accuracy integrated balance. The microprocessor then measures the binder content which is displayed on the screen. The users have the option to take a print of the results or store the test result.
