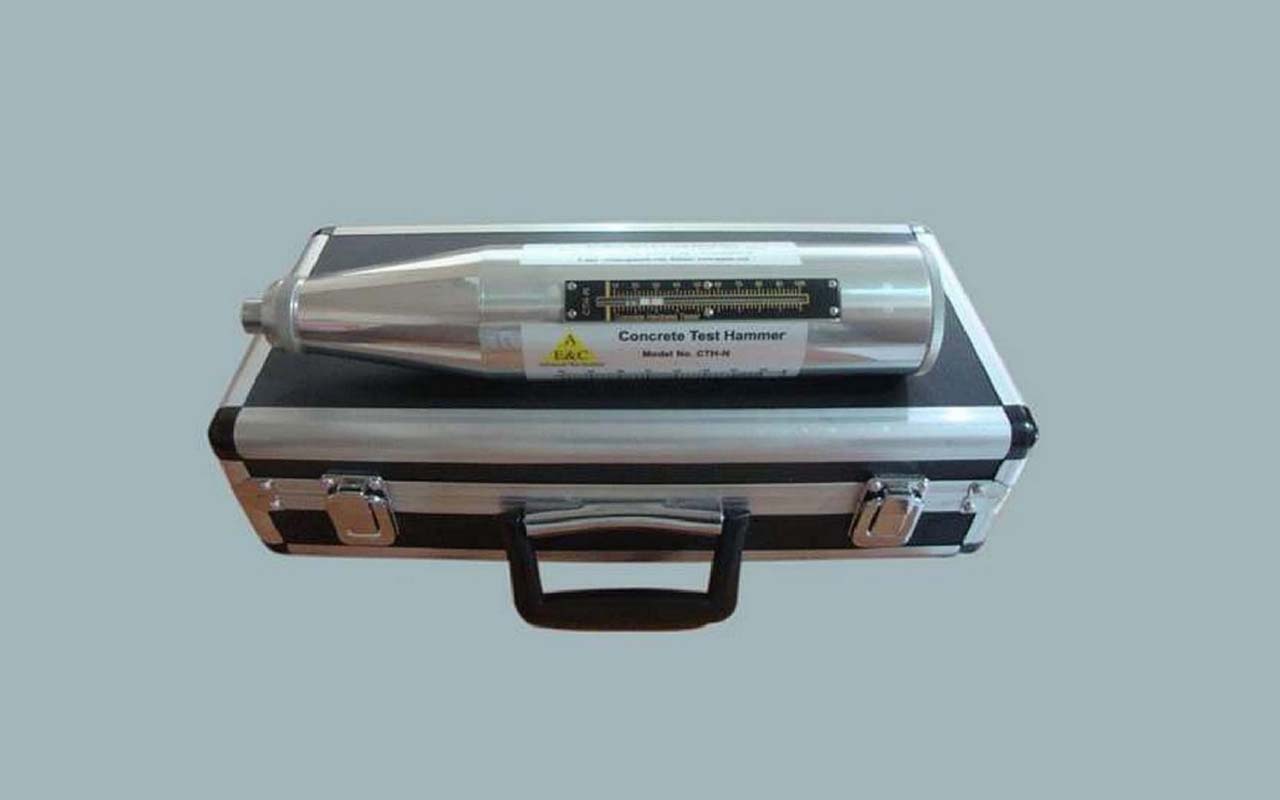

Concrete Test Hammer, CTH-N

Concrete Test Hammer, CTH-N ideally suited for on-site tests of concrete and is widely used instrument for analyzing the uniformity and compressive strength characteristics of concrete structures and Detection of weak spots in the concrete. Conforms to BS 1881: Part 202.

Specifications

  • Impact Energy : 2.207 Nm
  • Accuracy: Better than + 2 Rebound Numbers when tested on Calibration Anvil
  • Resolution: 2 Rebound Number(s)
  • Range: 10 to 100 Rebound Number
  • Unit Selection: MPa, Psi
  • Weight: 1.5 kg.

Rebound hammers shall be serviced and verified annually and whenever there is reason to question their proper
operation.
