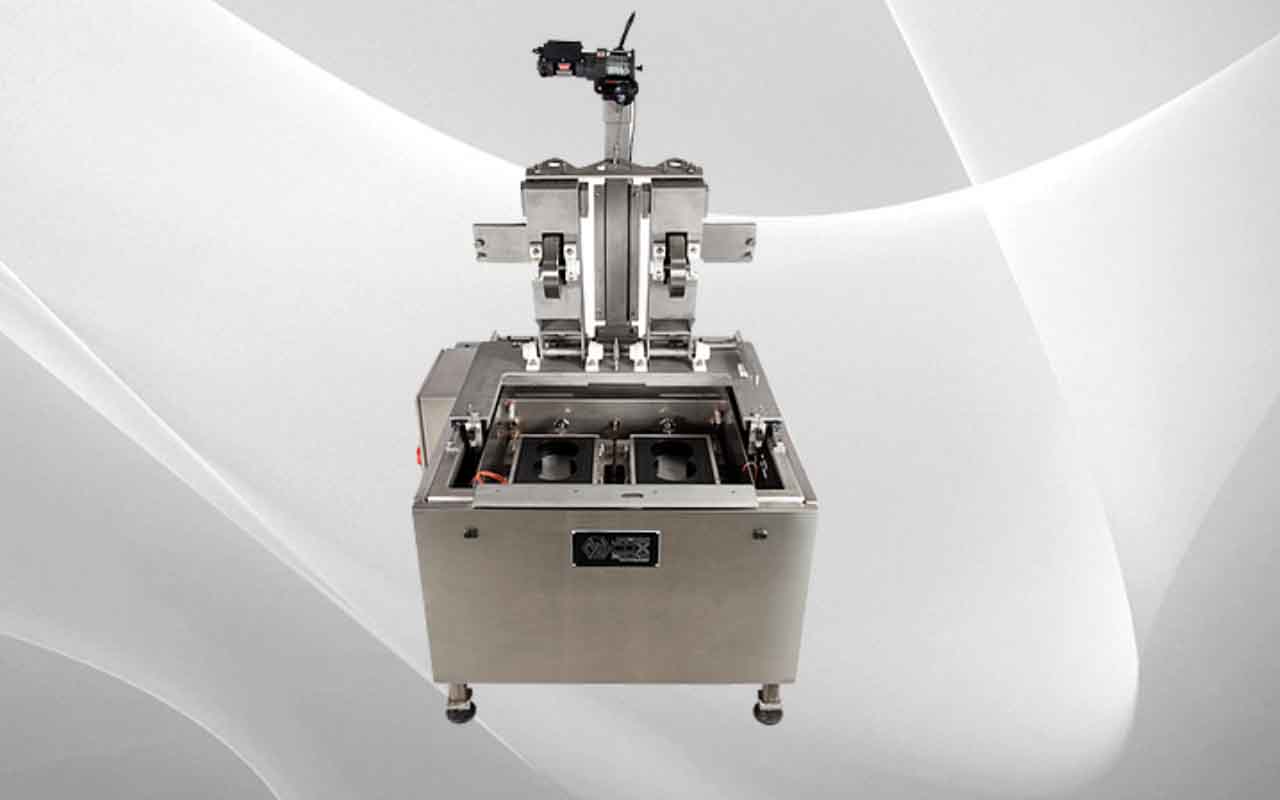

What differentiates the Hamburg from other wheel tracking methods is the use of water to condition the temperature of the specimens rather than air. It is believed that the water, in some tests, strips the aggregate which creates a tertiary phase that is distinct from the permanent deformation which occurs in dry wheel tracking tests. The use of stainless steel wheels on a weighted cantilevered arm, in conjunction with water has led some people to refer to Hamburg wheel tracking as a ‘torture test’. Certainly it is the case that less well constructed machines will shake to pieces due to the aggressive nature of the test. The Cox Hamburg is manufactured in California from thick solid stainless steel. Painted steel panels and parts are not an option for the Hamburg test. Our Hamburg is built to last decades not just a couple of years, which is why it comes with a five year warranty. A rigid frame construction is also essential for accurate results. Cheaply produced machines will flex machine and quality of test results go hand in hand. and vibrate with deeper rut depths. Quality The Cox Hamburg will output more precise and accurate results than any other Hamburg machine – guaranteed.
Features:
- Full super rigid stainless steel construction
- The most rugged, precise and accurate Hamburg wheel tracker available
- Auto arm lift for fully automated test procedure and user safety
- True sinusoidal motion
- Mechanical recirculating water bath for accurate control of the water temperature to better than ±0.5C
- Two displacement transducers with a resolution of 0.01mm, positioned in line with the wheel to ensure accurate measurement of the rut
- Continuous rut and rut profile measurement throughout the test
- Analysis software to automatically pick the inflection point and analyse the output data
- Air hood option for dry tests
- Stainless steel and rubber wheels available
- Built-in timer to start tests automatically
- AASHTO T324, a variety of DOT methods and EN12697-22
- Anytime remote access support
- Quality build in the USA
Software:
- User friendly, intuitive and reliable Windows® software developed using LabVIEW™
- Specifically written to meet AASHTO and ASTM standards
- The user interface can be translated into the user’s preferred language – please inquire
- Stored test data can be analyzed and compared with other test data utilizing a spreadsheet package
- Utilities are included for curve fitting of acquired data; testing of system’s inputs and outputs; phase correction and a transducer database for storing calibration factors
Includes full software control of arms individually at outset and completion of test, with stainless steel frame, includes full software package, traceable calibration certificate and desk PC. To perform testing according to AASHTO T324
Frequently Asked Questions
1. What is a Hamburg Wheel Tracker?
A Hamburg Wheel Tracker is an asphalt testing machine used to evaluate the resistance of asphalt mixtures to rutting and moisture-induced damage. It applies repeated wheel loads to compacted asphalt specimens under controlled temperature conditions to assess pavement performance.
2. What is the HA-5300.4F Hamburg Wet/Dry Wheel Tracker used for?
The HA-5300.4F is used to evaluate the rutting resistance and moisture susceptibility of asphalt mixtures. It supports wet testing using a temperature-controlled water bath and can also be configured for dry wheel-tracking tests with an optional air hood.
3. How does the Hamburg Wheel Tracking Test work?
In the Hamburg test, a loaded steel wheel repeatedly passes over an asphalt specimen. The machine records the resulting deformation or rut depth over the test period. In wet testing, specimens are immersed in temperature-controlled water to evaluate both permanent deformation and moisture-related damage.
4. Which standards are followed for Hamburg Wheel Tracker testing?
AASHTO T 324 is a commonly used standard for Hamburg Wheel-Track testing. EN 12697-22 is also used for wheel-tracking tests in applicable regions. The selected procedure depends on project specifications and testing requirements.
5. What are the main features of the HA-5300.4F Hamburg Wheel Tracker?
The HA-5300.4F includes a rigid stainless-steel construction, automated arm lifting, controlled water-bath temperature, displacement transducers for rut-depth measurement, continuous rut-profile monitoring and software-based data analysis. An optional air hood supports dry testing.
6. Why is Hamburg Wheel Tracker testing important for asphalt pavement quality?
Hamburg Wheel Tracker testing helps engineers understand how asphalt mixtures respond to repeated traffic loading and moisture exposure. It supports the evaluation of rutting resistance, moisture susceptibility and potential stripping-related behaviour, helping with asphalt mix design and quality control.
7. Where can I find a reliable Hamburg Wheel Tracker Supplier in India?
Avantech Engineering Consortium Pvt. Ltd. supplies the HA-5300.4F Hamburg Wet/Dry Wheel Tracker for asphalt mixture performance evaluation. The equipment is suitable for pavement research laboratories, highway authorities, asphalt producers and quality control testing facilities.
