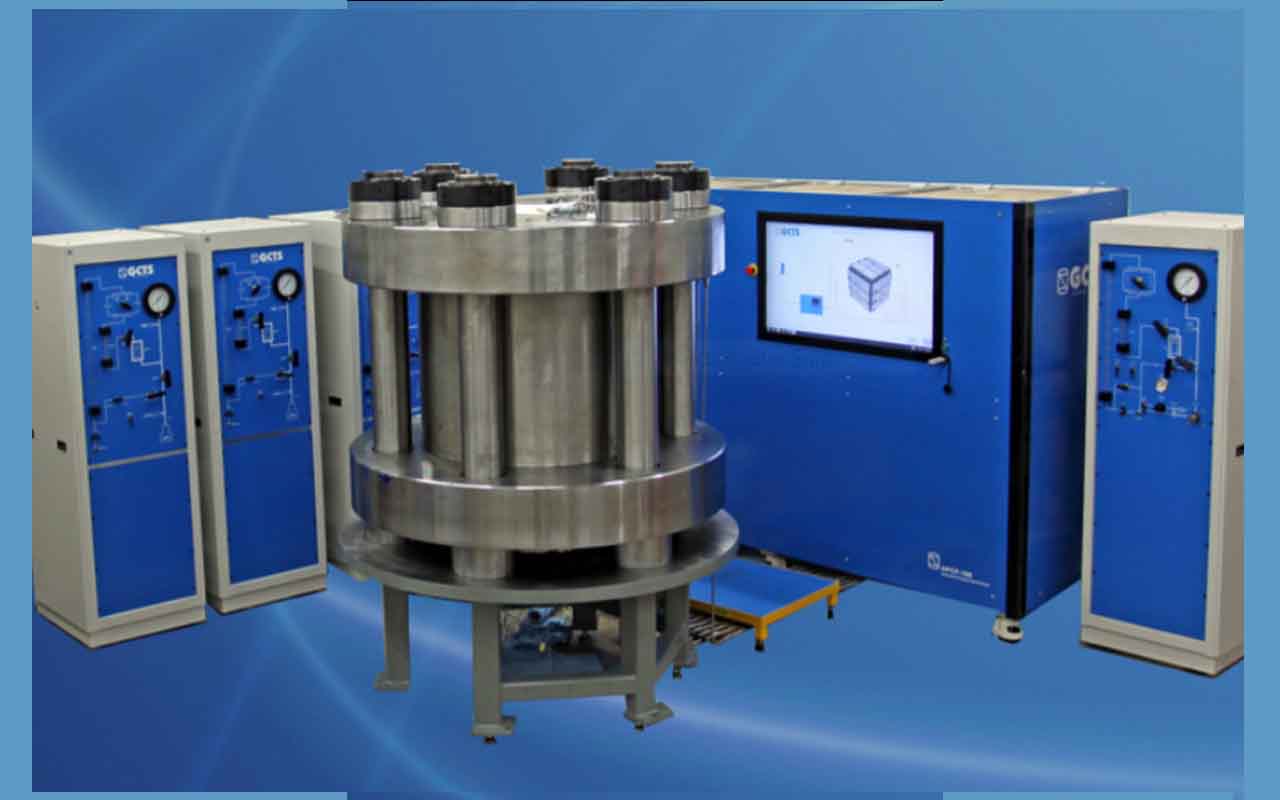

RPS-600 Poly-Axial (True Triaxial) Rock Testing System

  • Test cubical 300 x 300 by 300 mm size rock specimens (12”x12”x12”), larger sizes available
  • Perform Poly-axial (true triaxial) tests
  • Independent control of σ1, σ2, σ3 (where σ1≠σ2≠σ3) or 1, 2, 3 or a combination of stress
    or strain control for each axis
  • Measures strains in all three orthogonal directions
  • Pore pressure control up to 140 MPa
  • Ultrasonic sensors to measure P and S wave velocities under different stress states
  • Hydraulic fracturing platens available to perform wellbore stability tests
  • Acoustic Emission measurements
  • Temperature control up to 200 °C
  • Systems built to customer specifications

The RPS-600 is designed to test cubical specimens 12 x 12 x 12 inches and have the capability of applying orthogonal stresses in each of the three principal directions. The maximum major principal stress is 15,000 psi.

This system provides independent control of all three principal stresses. Hydraulic pressures to fracture rock specimens can be applied at the center of the cubical specimen while controlling all three principal stresses. A second pressure port is also provided to measure specimen pore pressures.

Ultrasonic velocity can be measure in any orthogonal direction as well as acoustic emissions while applying test stresses and hydraulic fracturing pressures. Three-dimensional event location software is also included.
