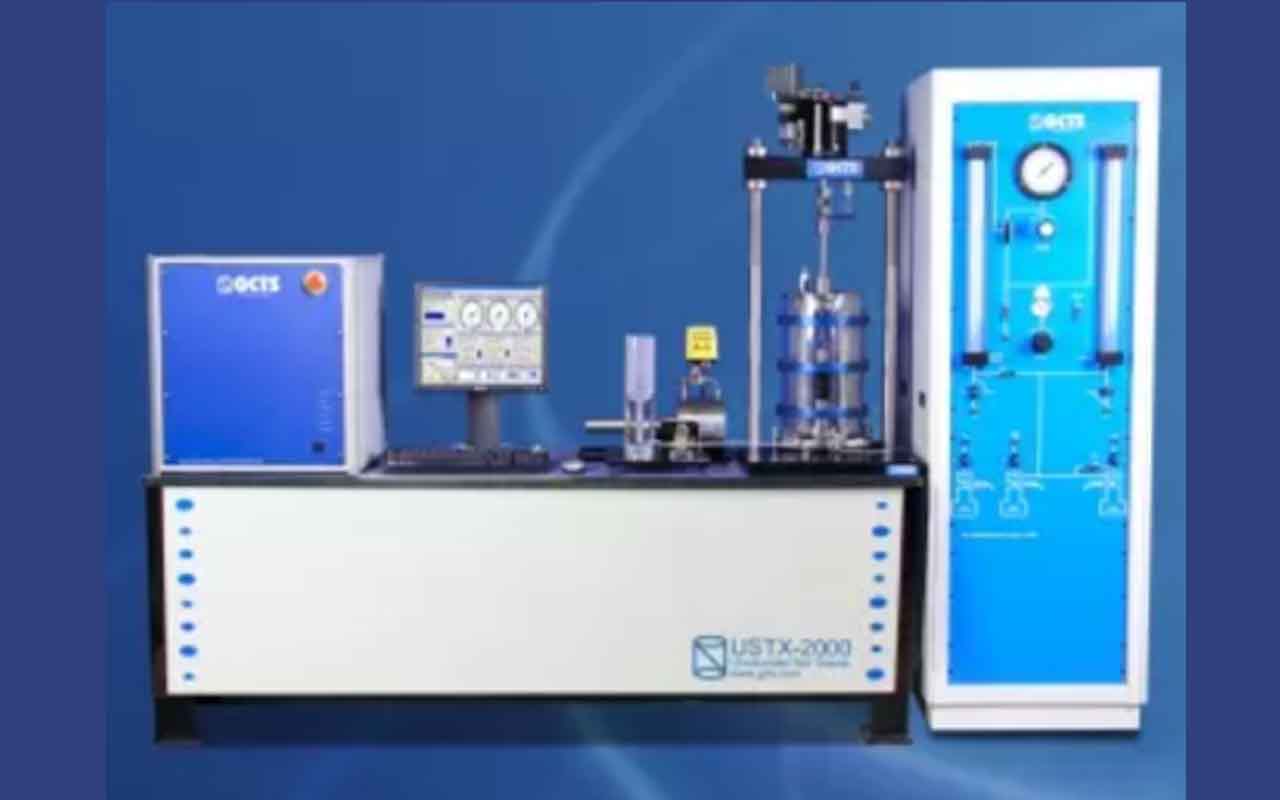

USTX-2000 Unsaturated Soil Triaxial Testing System

  • Direct control/measurement of pore water pressure (uw) at top/bottom of the specimen
  • Direct control/measurement of pore air pressure (ua) at the top of the test specimen
  • Performs static and dynamic tests
  • Sat./Unsat. Triaxial Shear with stress/strain path
  • Drying/wetting Soil Water Characteristic Curves (SWCC)
  • Hydraulic Conductivity Measurements with suction control
  • Saturated/Unsaturated Consolidation
  • Response to Wetting Test
  • Liquefaction
  • Resilient Modulus
  • Cyclic Strength
  • Frequencies up to 5 Hertz with significant amplitudes (larger with electro-hydraulic option)
  • Closed-loop digital servo control
  • Double cell wall construction for accurate overall volume change measurements
  • Easily exchangeable HAEV ceramic stones
  • Complete turn-key system


In the realm of geotechnical engineering, understanding the behavior of soil under different moisture conditions is of paramount importance. Unsaturated soils, which fall between the extremes of completely dry and saturated, present unique challenges and require specialized testing methods. One such method is the Unsaturated Triaxial Test, a critical tool for assessing soil stability and performance. This article explores the equipment used in Unsaturated Triaxial Testing and its applications, shedding light on the latest advancements in the field.

Unsaturated Triaxial Test: An Overview

Before delving into the equipment, it’s essential to understand the Unsaturated Triaxial Test. This test assesses how soil responds under different degrees of saturation. The primary parameters evaluated include matric suction, shear strength, and volume change characteristics. The results of this test are invaluable in geotechnical and environmental engineering, as they provide insights into soil behavior under real-world conditions.

Key Components of Unsaturated Triaxial Test Equipment

  1. Triaxial Cell: At the heart of the equipment is the triaxial cell, which consists of a cylindrical sample chamber, a piston, and a confining pressure chamber. The sample chamber is where the unsaturated soil specimen is placed. The piston applies axial stress, and the confining pressure chamber surrounds the sample, applying radial stress.
  2. Pressure Control System: To simulate various moisture conditions, a precise pressure control system is essential. This system maintains the desired pore pressure in the sample, allowing for testing under different degrees of saturation.
  3. Data Acquisition System: Modern Unsaturated Triaxial Test equipment is equipped with advanced data acquisition systems. These systems record parameters such as axial and radial stresses, axial and radial strains, and pore water pressure, providing comprehensive data for analysis.
  4. Soil Preparation Equipment: Proper soil specimen preparation is critical to the accuracy of test results. This equipment includes tools for sample trimming, saturation, and installation within the triaxial cell.
  5. Software: To ensure efficient data analysis and reporting, dedicated software is used in conjunction with the equipment. This software facilitates real-time monitoring and post-test data processing, making it easier to draw conclusions from the test results.

Advancements in Unsaturated Triaxial Test Equipment

In recent years, Unsaturated Triaxial Test equipment has undergone significant advancements, enhancing its accuracy and usability. Some notable improvements include:

  1. Automated Testing: The latest equipment is equipped with automation features, reducing the need for manual intervention. This streamlines the testing process and minimizes the risk of errors.
  2. Increased Precision: Advancements in sensor technology and control systems have led to improved precision in measuring pore water pressure, stress, and strain. This ensures more reliable and consistent results.
  3. Versatility: Modern equipment can handle a wider range of soil types and sizes, accommodating various research and testing needs. This versatility expands the scope of applications for Unsaturated Triaxial Testing.
  4. Data Visualization: Newer data acquisition systems offer advanced visualization tools. Researchers can monitor the test progress in real-time and gain immediate insights into soil behavior.

Applications of Unsaturated Triaxial Test Equipment

Unsaturated Triaxial Test equipment finds applications in several fields:

  1. Geotechnical Engineering: It helps assess the stability and deformation characteristics of soils in construction projects, such as foundations and embankments. This data aids in designing safe and durable structures.
  2. Agriculture: Understanding soil behavior under different moisture conditions is essential for optimizing crop growth. Unsaturated Triaxial Testing helps in agricultural soil management.
  3. Environmental Engineering: Evaluating the behavior of soils in waste containment facilities, landfills, and contaminated sites is crucial for environmental protection.
  4. Transportation Engineering: Assessing the resilience of soils under various moisture conditions is essential for the construction of road and railway foundations.

Optimizing Unsaturated Triaxial Test Equipment for Research

Researchers can optimize their use of Unsaturated Triaxial Test equipment by following these best practices:

  1. Proper Specimen Preparation: Careful soil specimen preparation is vital for accurate results. It’s essential to maintain the soil’s initial properties during sampling and specimen installation.
  2. Thorough Data Analysis: The wealth of data collected requires thorough analysis. Researchers should use the software provided with the equipment to interpret results accurately.
  3. Regular Calibration: To ensure the equipment’s accuracy, regular calibration and maintenance are necessary.


Unsaturated Triaxial Test equipment is a valuable tool for assessing soil behavior under various moisture conditions. With recent advancements in equipment and its expanding applications, it continues to play a pivotal role in geotechnical engineering, agriculture, environmental protection, and transportation engineering. Researchers and engineers can harness the power of this equipment to make informed decisions and design more resilient structures and systems. As the field continues to evolve, staying updated with the latest advancements is crucial for accurate and insightful testing.


  1. How does unsaturated triaxial testing differ from saturated triaxial testing?
    In unsaturated triaxial testing, the soil specimen is not fully saturated with water, simulating real-world conditions. In saturated triaxial testing, the soil is completely saturated.
  2. Why is unsaturated triaxial testing important in geotechnical research?
    It helps us understand soil behavior in realistic moisture conditions, which is crucial for various engineering applications such as slope stability, foundation design, and environmental studies.
  3. What are the key components of unsaturated triaxial test equipment?
    The equipment typically includes a triaxial cell, pressure and volume control systems, and instruments for measuring stress, strain, and pore-water pressure.
  4. What are the main parameters that can be measured with unsaturated triaxial test equipment?
    It allows the determination of soil shear strength, hydraulic conductivity, and the soil-water characteristic curve, providing valuable data for engineering analysis.
  5. What are the trending developments in unsaturated triaxial testing equipment?
    Trending developments in this field include the integration of advanced sensors for real-time data monitoring, automation for improved testing efficiency, and software tools for data analysis.
  6. Are there any safety precautions to consider when using unsaturated triaxial test equipment?
    Safety precautions include following equipment operation guidelines, wearing appropriate personal protective equipment, and ensuring proper training for equipment operators.
  7. What are some real-world applications of data obtained from unsaturated triaxial tests?
    Data from these tests are used in geotechnical engineering to assess the stability of slopes, design foundations, and evaluate the impact of moisture content on soil behavior.
  8. How can I obtain accurate and reliable data from unsaturated triaxial tests?
    To ensure accurate data, it’s crucial to carefully follow testing procedures, calibrate equipment, and maintain consistent test conditions, including temperature and confining pressure.
  9. Are there any international standards or guidelines for unsaturated triaxial testing?
    Yes, organizations such as ASTM International and ISO have established standards and guidelines for conducting unsaturated triaxial tests to ensure consistency and reliability in results.
