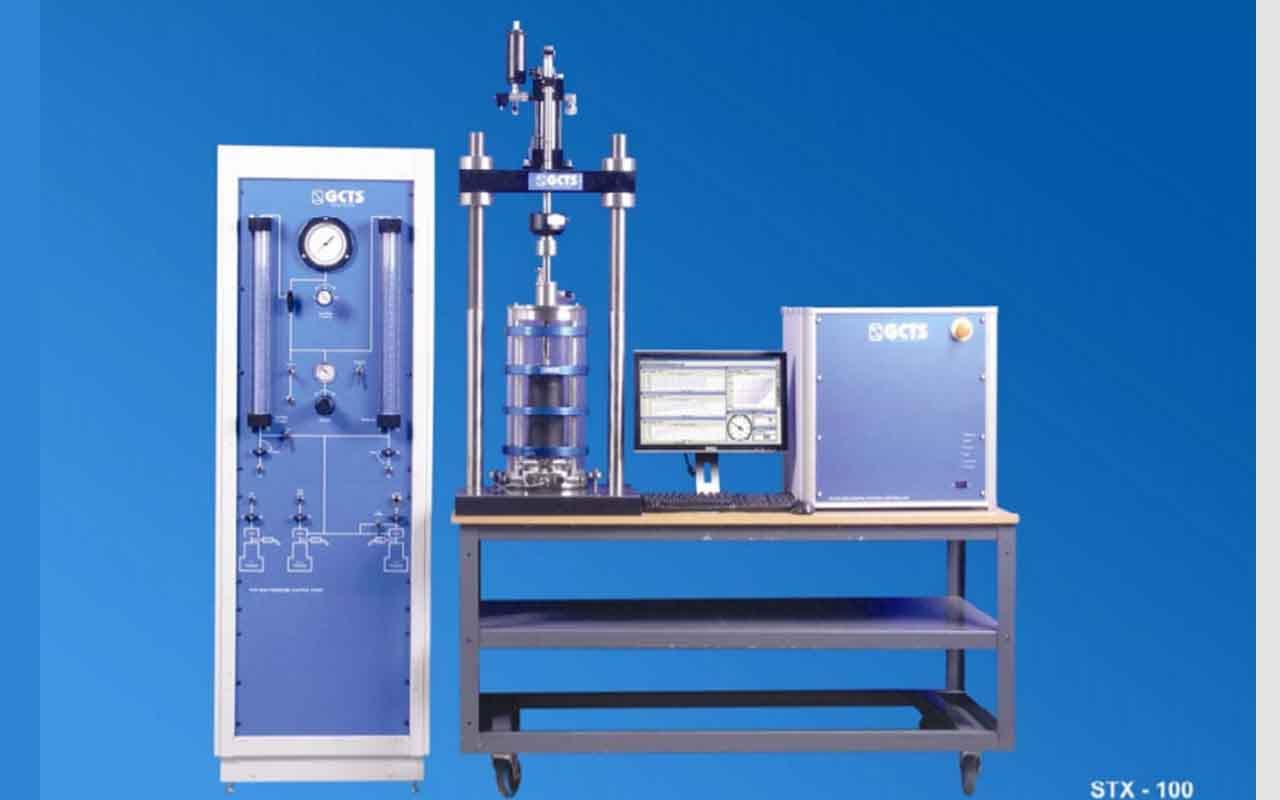

STX-100 Dynamic Stress Path Soil Triaxial System

• Electro-Hydraulic digital servo control
• Dynamic and static triaxial tests
• Frequencies up to 30 Hz
• Specimen Diameter from 35 mm to 150 mm
• Axial loads up to 100 kN
• Cell Pressures up to 2,000 kPa
• Biaxial dynamic tests up to 5 Hz with synchronized loading
• Stress, strain (axial, radial, volumetric, etc. ) or any other calculated variable servo control
• Resilient Modulus, Bender Element & Unsaturated soil testing options available
• Meets ASTM D-3999 & D-5311 Standards


The STX-100 triaxial testing system is intended for performing dynamic tests for liquefaction, resilient modulus, cyclic strength, complex modulus, and other dynamic triaxial tests including synchronized cyclic axial and confining stress loading. This system also provides the necessary versatility to automatically perform conventional triaxial tests as well as advanced procedures such as stress or strain path.

The standard STX-100 system includes all the necessary hardware and software to automatically perform all triaxial stages including saturation, consolidation, and easily created cyclic and static customized test procedures. It allows creation of an unlimited variety of waveforms including usergenerated profiles such as a digitized earthquake record. The system software provides advice for the user as to how to perform testing tasks. The program helps the user select the proper testing parameters
