Concrete Crack Measuring Microscope

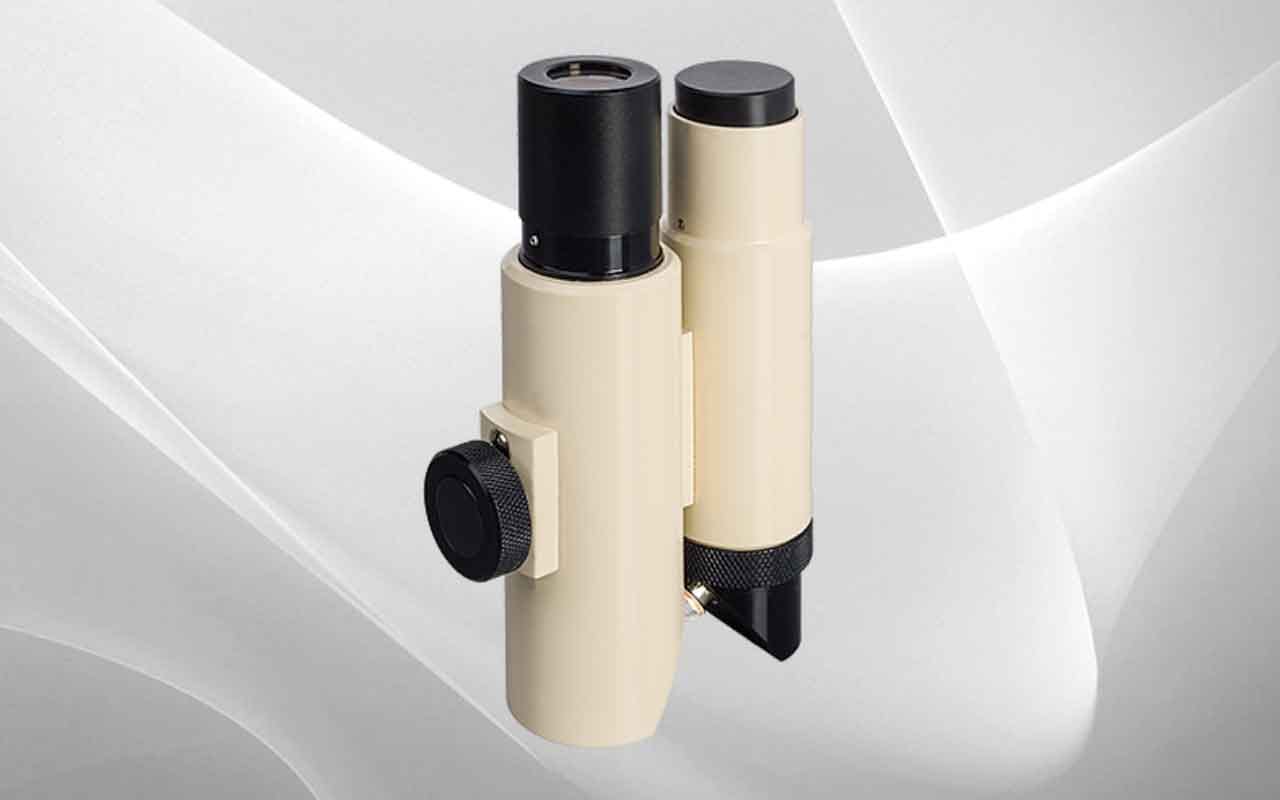

The crack measuring microscope is a precision, hand-made product, which is designed specifically for measuring cracks in concrete. This high-definition microscope is further enhanced by having its own adjustable light source for darkened conditions. Overall height of the microscope is 5.125″ (130mm).

The image is focused by turning a knurled knob on the side of the instrument and the eyepiece scale can be rotated through 360° to align with the direction of the crack. The 4mm width of measurement has a lower scale, divided into 0.2mm divisions, which are subdivided into 0.02mm divisions. Comes complete in its own sturdy wooden pocket-size case.
